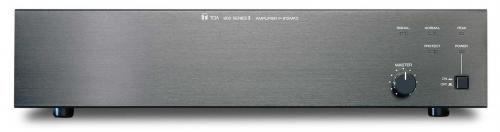

TOA P-924MK2 (240W) Single Channel Power Amplifier
TOA
TOA P900 Series Amplifiers are high watt, single-channel, modular amps that are ideal for powering the 70volt systems commonly found in Kingdom Halls. P900 Series Amplifiers offer a wide frequency response, low noise and distortion, and TOA's well-known quality and reliability. It has a single module slot for easy custom configuration using TOA plug-in modules. The system also has a direct input so that it may be used without an input module. Selectable input sensitivity accommodates high or low input levels. A low cut switch to limit low frequency response. A master volume control with indicators for normal, signal, power, protect, and signal. Plus a turn-on delay which disconnects the output during power-up to prevent shock to the speakers.
Available in three power variations; P906MK2 (60W), P912MK2 (120W) and P240MK2 (240W). Each unit is rack mountable with the appropriate optional rack mount kit (MB25B for P906MK2 & P912MK2 amps, MB35B for P924MK2 amps).
Features:
- Modular design allows fast and easy custom configurations.
- Engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.
- 25 V, 70 V and 4 ohm / 8 Ohm Speaker Outputs with screw terminal connector and protective cover plate.
- Protection Circuitry prevents potential damage from overload, short-circuit, DC offset or overheating.
- Master Volume Control.
- Normal, Peak, Power, Protect, and Signal LEDs provide instantly recognizable status indication.
- Direct Input for connecting an external mixer or recording device.
- 20 dB Input Gain Switch for high or low input levels.
- Low Cut Switch to limit low frequency response.
- Volume Control Security Cover included (1), model YA-920.
- UL / CSA Listed.
What's In The Box:
- (1) P-906MK2 60 Watt Single-Channel Modular Power Amplifier
- (1) YA-920 Volume Control Security Cover
- (1) AC Power Cord - 2m
 |
ProAudioSuperstore.com offers the full line of TOA 900 Series I/O Modules for use in compatible TOA amplified mixers. Click the link to the left to see variations. Feel free to Contact Us if you have questions about compatibility or functionality. |
| Type | Power amplifier |
|---|---|
| Power Requirement | AC mains, 120 V, 60 Hz |
| Power Consumption | 120 V /3 A |
| Output Power | (D) 240 W RMS (T) 220 W RMS |
| Power Band Width | (D) 20 - 20,000 Hz, 0.5 % THD (T) 50 - 20,000 Hz, 0.5 % THD |
| Frequency Response | (D) 20 - 20,000 Hz, ±1 dB (T) 20 - 15,000 Hz, ±1 dB, (T) 20 - 20,000 Hz, +1 dB, -3 dB |
| T.H.D | 0.01 % at 1 kHz, rated output |
| Inputs | One Input Port: Port accepts any input module exept T-01. One Direct Input ※ Use of direct input prohibits use of modular input port. |
| Input Sensitivity /Impedance | Input Port: 100 mV or 1000 mV (switchable)/10 kΩ Direct Input: 100 mV or 1000 mV (switchable)/10 kΩ |
| Outputs(T)=Transformer (D)=Direct | Main (T): 8 Ω, 25 and 70 volts, balanced Main (D): 4 Ω, unbalanced |
| Output Regulation(1kHz) | (D) Less than 0.5 dB, no load to full load (T) Less than 1.0 dB, no load to full load |
| S/N Ratio(Band Pass 20-20,000Hz) | Input level switch in 0 dBV (1000 mV) position: 108 dB Input level switch in -20 dBV (100 mV) position: 90 dB |
| Controls | 1 Input gain control 1 Input level switch 1 Power ON/OFF switch 1 Low-Cut switch |
| Indicators | 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED |
| Protection | Self-protection, with 2AC fuses and 2DC fuses (inside) |
| Connectors | Input: Card-edge connector and screw-terminal strip Output: Screw-terminal strip AC outlet: 3-pin grounding type AC power cord/plug: SJT, 3-prong type |
| Temperature Range | -10 ℃ to +60 ℃ |
| Finish | Black |
| Dimensions | 420 (W) × 151.3 (H) × 334.2 (D) mm |
| Weight | 19.5 kg |
| Accessory | Volume control cover (YA-920)……1 |
| Option | Rack mounting bracket (MB-35B) |
