- Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.
- Switch-mode universal power supply.
- Intuitive front-panel LCD screen for quick, easy configuration.
- Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting.
- Up to 20 user defined DSP presets are available.

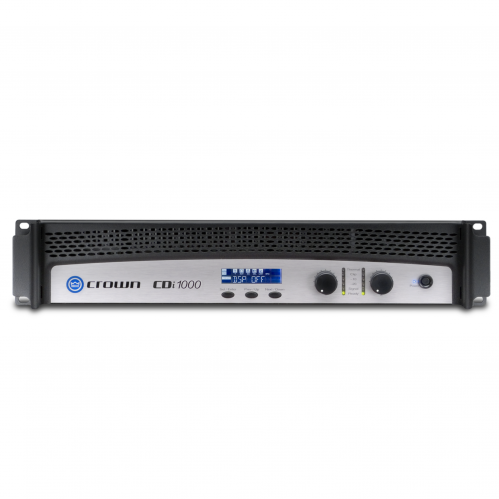

Crown Audio CDi 1000 Two-Channel Commercial Amplifier (500W/Channel at 4 Ohms 70V/140V)
Crown The Crown CDi-1000 is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation. 2 channel, 500W per channel at 4 ohms and 2RU.
Authorized Dealer:
The 2 RU rack-mountable Crown Audio CDi 1000 is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation in installed audio applications such as restaurants, retail stores, warehouses, offices, and more. The CDi 1000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It delivers 500W per channel at 4 Ohms, and supports multiple low-impedance configurations, as well as 70V and 140V constant-voltage systems. The switch-mode universal power supply enables safe operation across the globe.
Features
Power Amplifier
| Number of Channels | 2 |
| Power Rating | 2 Ohms: 700 W per Channel 4 Ohms: 500 W per Channel 1400 W Bridged 8 Ohms: 275 W per Channel 70 V: 500 W per Channel 140 V: 1000 W Bridged |
| Load Impedance / Voltage | Parallel: 2 / 4 / 8 Ohms Bridged/Mono: 4 / 8 / 16 Ohms |
Performance
| Frequency Response | 20 Hz to 20 kHz +0/-1 dB |
| Damping Factor | >500 |
| Input Sensitivity | 1.4 V (at 8 Ohms) |
| Input Impedance | 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| Max Gain | 30.5 dB (at 8 Ohms) |
| SNR | 100 dBA (at 8 Ohms) |
| THD | <0.5% |
| Crosstalk | >70 dB (Below Rated Power, 20 Hz to 1 kHz) |
Connectivity
| I/O | 2 x Euroblock 3-Pin Input (Detachable) Barrier Strip 4-Pin Output |
| USB | 1 x USB Type-B |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | IEC / NEMA 5-15 |
| Current Consumption | 6.8 A |
| Power Consumption | 38 W (Idle) |
Physical
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 19.0 x 3.5 x 12.3" / 48.3 x 8.9 x 31.1 cm |
| Weight | 19 lb / 8.6 kg |
