dbx AFS2 Dual-Channel Advanced Feedback Suppression Processor
DBX
The AFS2 Dual-Channel Advanced Feedback Suppression Processor from DBX protects your ears and audio equipment from annoying and potentially damaging audio feedback without altering your sound. The AFS2 features application-specific filter types for speech, music low, music medium, and music high. The 24 fixed or live narrow-band notch filters are capable of removing frequencies at 1/80 of an octave, ensuring an optimal frequency response without the possibility of feedback.

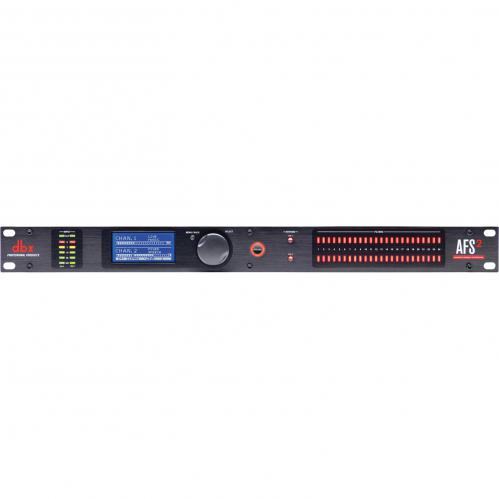

The front panel features the wizard function to take the guesswork out of setting up any room by incorporating an advanced feedback suppression module and providing a full LCD display for system settings and menus. Additionally, the AFS2 offers a five-segment LED for accurately monitoring input levels for each channel, while the notch filter indicator allows you to monitor the number of filters applied. Dedicated bypass buttons are included to help isolate problem channels. The rear panel offers XLR and 1/4" inputs and outputs, both switchable between +4 and -10 dB operations. A USB port has been provided for firmware updates. The AFS2 ships with a standard IEC power cable.
Features
- Wizard Setup Function
- Full LCD Display
- 24 Programmable Filters per Channel
- Stereo or Dual Channel Processing
Type: Electronically balanced and unbalanced, RF filtered
Impedance: Balanced 50 kohm, unbalanced 25 kohm
Max Line Level: +20 dBu
Type: Electronically balanced and unbalanced, RF filtered
Impedance: Balanced >120 ohms, unbalanced >60 ohms
Max Level: +20 dBu
A/D Dynamic Range: >113 dB A-weighted, >110 dB, unweighted, 22 kHz BW
Type IV Dynamic Range: >119 dB, A-weighted, 22 kHz BW; >117 dB, unweighted, 22 kHz BW
A/D Conversion: 24-bit
Sample Rate: 48 kHz
D/A Dynamic Range: 112 dB A-weighted, 109 dB unweighted
D/A Conversion: 24-bit
Crosstalk Input to Output: >80 dB
EU: 220 to 240 VAC 50 Hz
9 W
