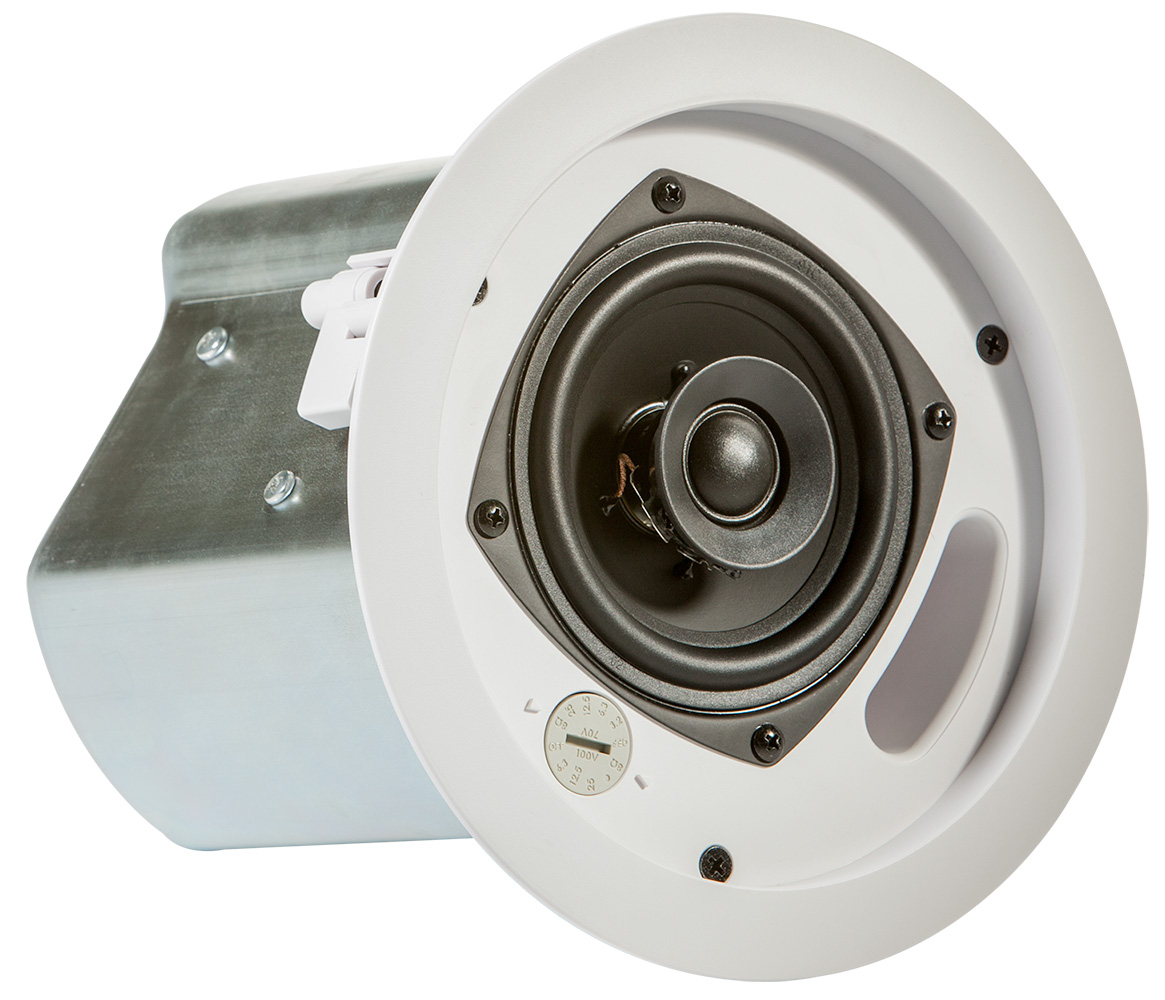

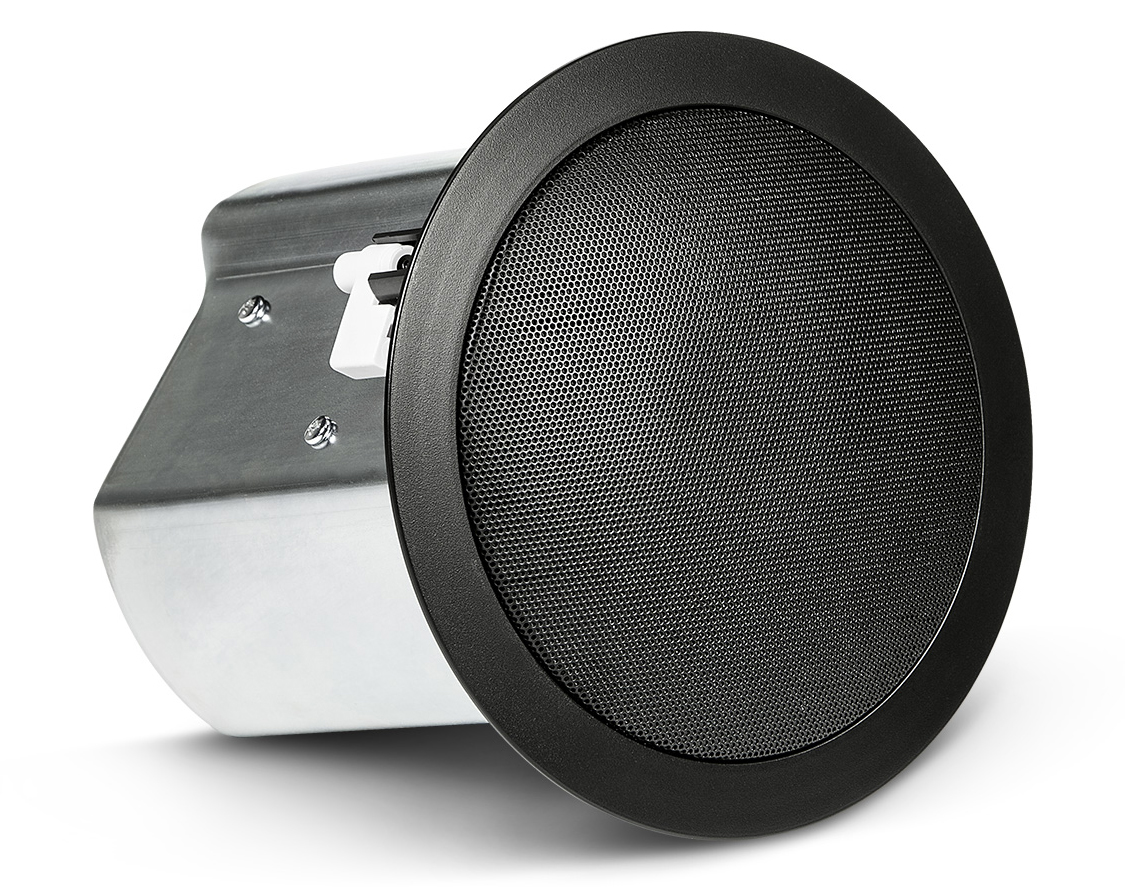

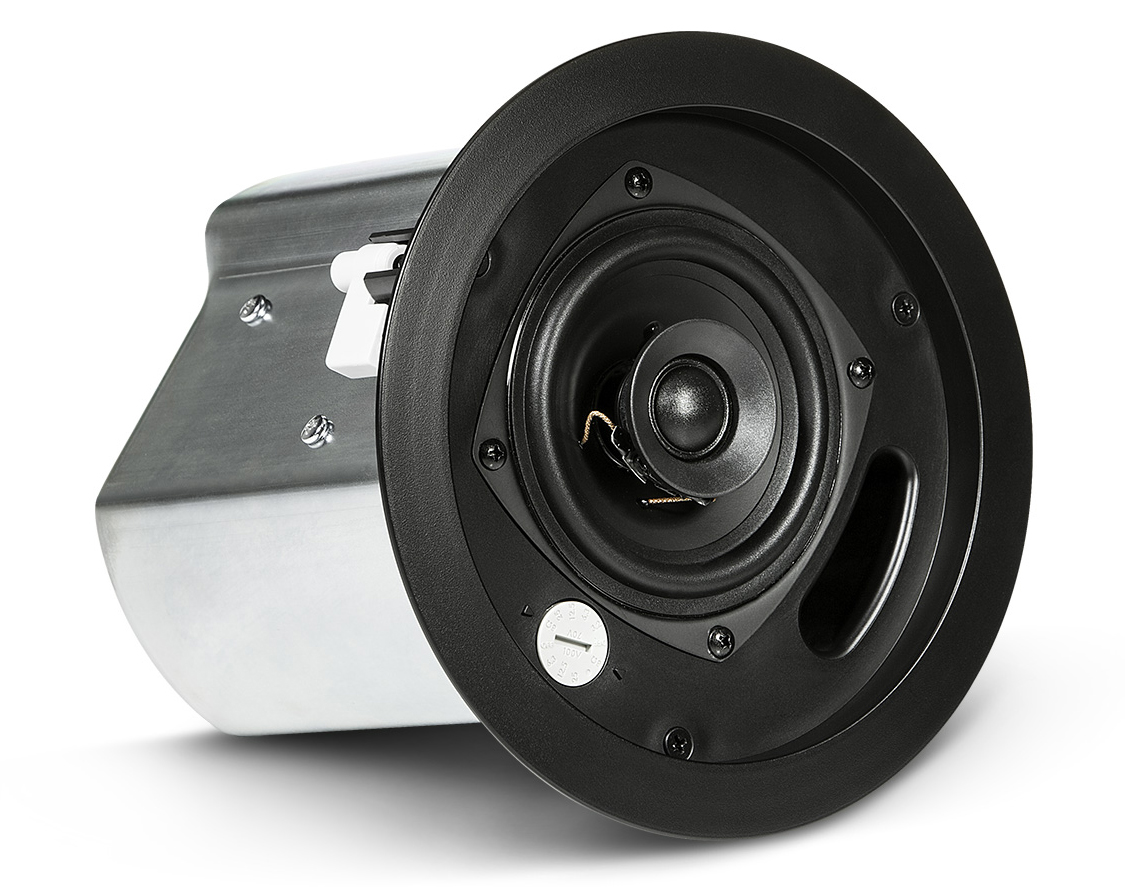

SKU: CONTROL14CT MPN: Control 14C/TThe JBL Control 14C/T is a high-quality 4" Coaxial in-ceiling speaker system for commercial installation applications. The Control 14C/T's pleasing sound quality and wide coverage pattern make it a perfect choice for background music applications.
Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
The JBL Control 14C/T is our most popular in-ceiling speaker. We sell literally thousands of these speakers every year because they sound fantastic, they are well built, and they include all of the required mounting hardware for both drywall and drop-tile ceilings.
The Control 14C/T is designed for use with 70V systems. It is a coaxial speaker with a 4" low frequency driver and a 0.75" soft-dome liquid-cooled tweeter. The speaker is completely housed and sealed in a metal can. It features a removable phenix terminal block for the speaker input and output. The grille is removable with a dial underneath for selecting the wattage tap for the speaker. It has taps at 3.2W, 6.3W, 12.5W, 25W, or an 8Ω Bypass as well. The Control 14C/T includes all of the mounting hardware for both suspended and drywall ceilings. Also, you can rest easy knowing that these speakers are up to building code standards with it's UL2043 Plenum listing.
|JBL Control 14C/T Technical Specifications|
|Speaker Type||70V Coaxial 4" In-Ceiling Speaker|
|Frequency Range (-10dB)||74Hz - 20kHz|
|Frequency Response (±3 dB)||100Hz - 20kHz|
|Max SPL Output||102 dB @ 1m average, 108 dB peak|
|Nominal Coverage Angle||120° conical coverage|
|Nominal Sensitivity||87 dB|
|Power Capacity (at low-Z)||60W Continuous Program, 30W Continuous Pink Noise|
|Transformer Taps||25W, 12.5W, 6.3W @ 70V or 100V, additional 3.2W tap @ 70V|
|Net Weight||4.8 lbs per speaker|
